Home > UV Coating Machine >

Digital Spot Uv Coating Machine Spray Paint 380VAC W1300mm

Product Categories
Dongguan Osmanuv Machinery Equipment Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Digital Spot Uv Coating Machine Spray Paint 380VAC W1300mm

Brand Name : Osmanuv

Model Number : OSM-PT-620T

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T,Western Union

Delivery Time : 35-45 Working days

Packaging Details : Wooden Box

Certification : ISO9001 And CE

Supply Ability : According to customer's demand

Calcium silicate board, cement fiber board, steel plate and new building materials : Reciprocating spraying machine

Size : 3900mm long × 4200mm deep × 2480mm high (according to the actual size)

Power supply : 380VAC/50HZ

Total power : 22KW

Maximum effective processing width : 620Mmm

Processing thickness : 3-80mm

Spray gun : adopt American GRACO automatic spray gun

Electric box : independent electric box

Contact Now

Digital Spot UV Coating Machine Spray Paint 380VAC W1300mm
Product Overview
380VAC W1300mm Spray UV Coating Machine Spray Paint Production Line designed for high-performance surface coating applications.
Key Features
1 Suitable for coatings on calcium silicate board, cement fiber board, steel plate and new building materials surface spraying real stone paint, water-in-water nano-color glaze, etc.
2 Japanese Mitsubishi PLC man-machine interface, Mitsubishi servo motor, inverter and other imported electrical appliances for mechanical stability
3 Spray system uses American Graco pumps and Graco large-caliber spray guns for precise spray metering control
4 Taiwan high-speed module system with stable performance and durability
5 Electrical part uses imported electrical appliances (Schneider contactor, Mitsubishi servo, Japan Hequan switch, etc.) for stable mechanical performance
6 Effective spraying width: 1300mm
Conveyor System
1 Acid and alkali resistant PU belt for product transportation with paint recovery and cleaning devices to prevent paint residue and reduce waste
2 Conveying speed: 1-5 m/min
Painting System
1 4 American GRACO automatic spray guns (spray gun caliber: 1.1mm)
2 Oil supply system: Taiwan Polaroid pressure regulating and oil supply system for perfect spraying quality
3 Spray gun layout: Two groups of spraying tracks, each with 2 GRACO automatic spray guns spraying at different angles; controlled by OMRON infrared photoelectric induction
4 Maximum stroke of spray gun: 3400mm reciprocating
5 Adjustable distance between spray gun and product controlled by OMRON electric eye for uniform paint application and material savings
Spray Booth & Technical Specifications
Air Filtration System High-efficiency air filter above automatic spraying machine to effectively filter dust and maintain clean spraying environment
Exhaust Gas Emission Paper paint filter system
Mechanical Configuration Front glass window for easy observation of sprayer working condition
Exhaust & Supplementary Air Two high-efficiency fans for exhaust and intake with filter system (air ducts and ventilation facilities not included)
Housing Material 1.5 cold-rolled plates bent and welded with computer color painting; 304# stainless steel mirror panel inner wall
Electrical Part Japan OMRON relay, CKC delay, Schneider contactor, Taiwan motor Chint leakage circuit breaker and other international safety standard components
Safety Devices Leakage circuit breakers, control circuit fuses, emergency switches complying with international safety standards
Machine Control Weilun man-machine interface with Delta PLC control
Sliding Rail Drive Mitsubishi servo motor
Warranty Whole machine: 1 year; Electrical part: 6 months (air filter not covered by warranty)

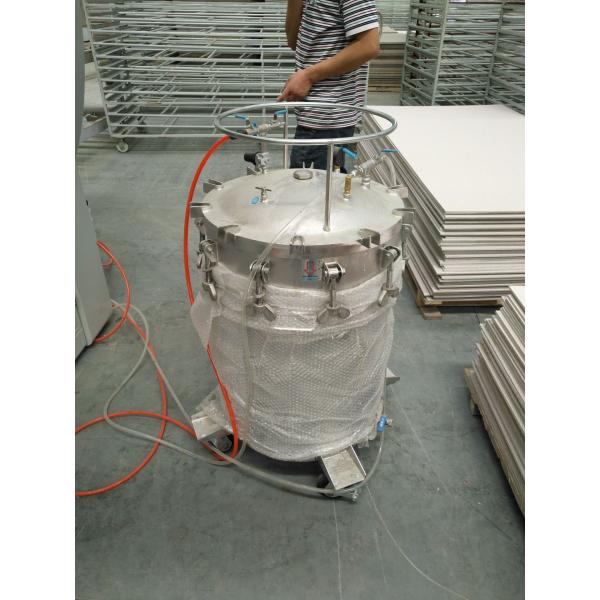

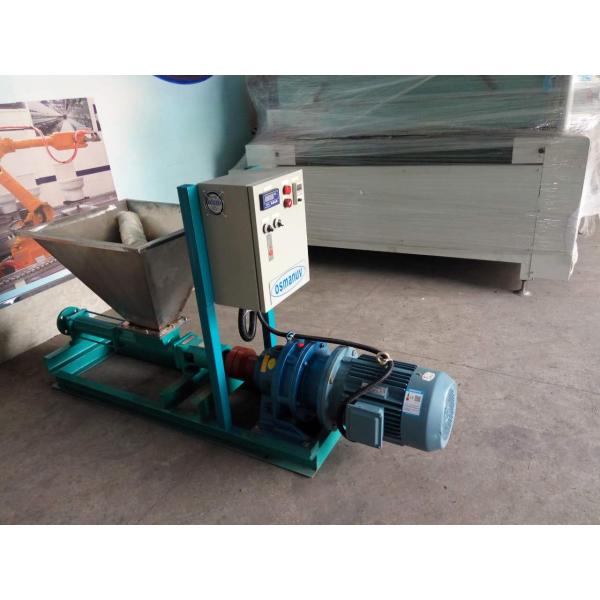

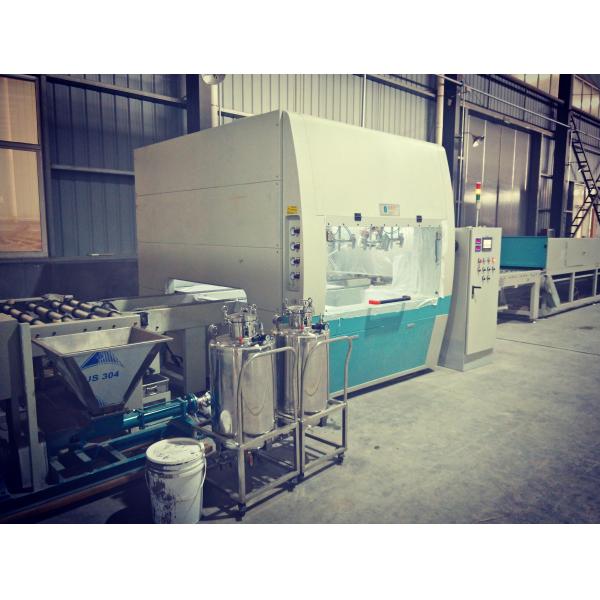

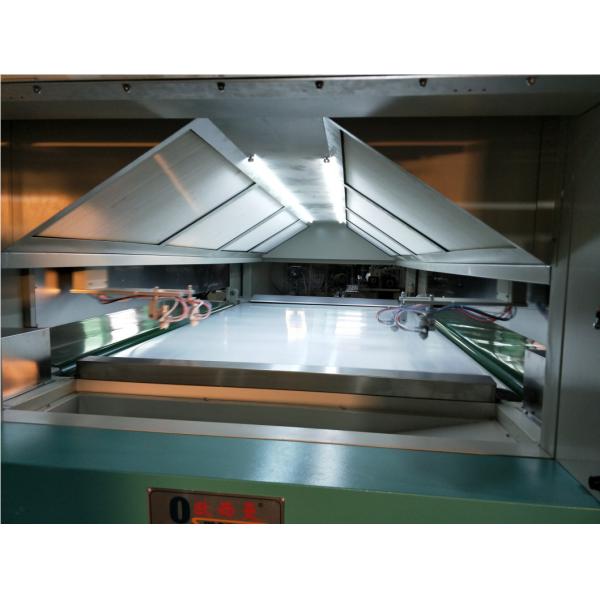

Product Images
Digital Spot Uv Coating Machine Spray Paint 380VAC W1300mm Digital Spot Uv Coating Machine Spray Paint 380VAC W1300mm Digital Spot Uv Coating Machine Spray Paint 380VAC W1300mm Digital Spot Uv Coating Machine Spray Paint 380VAC W1300mm
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with foreign trade independent import and export rights. Our factory is located in Guangdong, China.
How can I know your machine has good quality?
We will test your samples on our machines and provide video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Fully compliant with GMP & ISO standards with CE certification for exporting.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.

Product Tags:

Digital Spot Uv Coating Machine 380VAC



W1300mm Digital Spot Uv Coating Machine



380VAC spray paint production line


China Digital Spot Uv Coating Machine Spray Paint 380VAC W1300mm wholesale

Digital Spot Uv Coating Machine Spray Paint 380VAC W1300mm Images
